Materials
ASA (acrylonitrile butadiene styrene)
Type of material: Plastic
High mechanical strength and resistant against ultraviolet make ASA an excellent choice for functional prototyping. And due to simplicity in using it will for iterative development. Due to great appearance and ten bright colors choose this material will be one of the favorites, even for ultimate details.
Ultraviolet resistant prototypes
ASA is a FDM thermoplastic of industrial level. Accessible in 10 resistant colours.

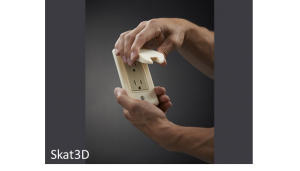

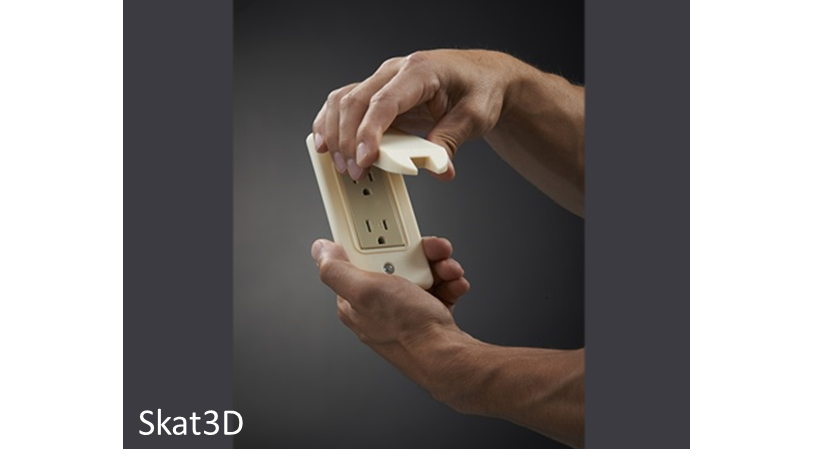

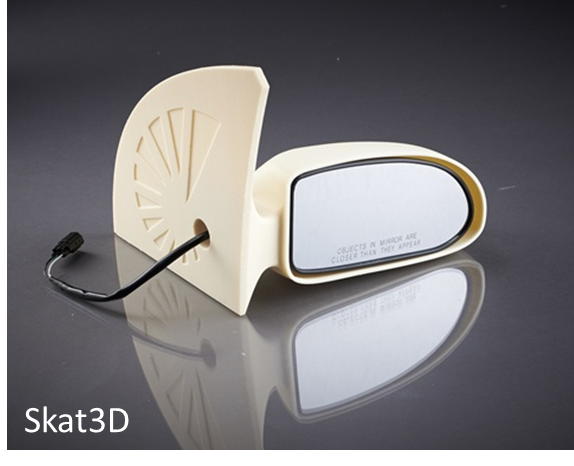

ASA combines a mechanical strength and ultraviolet stability with the best appearance from all FDM materials. Print abrasive resistant prototype models for check of assembling, form and functional tests. Or produce feasible ultimate details for use in an open air. From cases and fasteners for electricians, to sports goods and prototype models in motor car itry.
ASA works with soluble support material and can be used in all Fortus machines. Accessible colours include:
- Red
- Orange - not avaliable
- Yellow
- Green
- Dark blue
- White
- Dark gray - not avaliable
- Light gray - not avaliable
- Ivory
- Black
| Tensile capacity | 30 MPa |
| Bending strength | 48 MPa |
| Impact strength on Izodu (with notch) | 64J/m |
| Temperature of start of deformations (at 0,45 MPA) | 98 ºС |
| Permittivity | 2,97-3,04 |
| Density | 1,05 g/sm3 |
| Minimum wall thickness | 0,8 mm |
| Minimum diameter of the aperture | 1,5 mm |
| Measurement | 0,17 mm |
| Maximum size of the model | 406x355x406 mm |
